What is a Split tube plate flange? Introduction to the principle of tube sheet structure

Split tube plate flangeIt is a kind of fitting with specific holes drilled on circular steel plate, which are slightly larger than the outer diameter of the pipe to be penetrated.，is a popular Split tube plate flange。

1、Brief introduction of Split tube plate flange

Split tube plate flangeA hole slightly larger than the outer diameter of the pipe is drilled on the circular steel plate for fixing the pipe and the round steel fittings for sealing the medium. It is usually installed in a heat exchanger, and the pipe is penetrated and welded and fixed, thus playing the role of support and sealing. [Product Name] The machining accuracy, especially the distance between holes, the tolerance of pipe diameter, verticality and smoothness, has an important influence on the assembly and performance of chemical equipment.。

Split tube plate flange

2、Split tube plate flange advantage

Split tube plate flanges have the following advantages.

1. Supporting and fixing action

As one of the skeletons of heat exchangers and other equipment, the Split tube plate flange is responsible for supporting and fixing the tubes to ensure that they will not be loosened or deformed due to fluid impact during work. This stability is very important for the long-term operation of the equipment.

2. Convenient maintenance

The structural design of Split tube plate flanges usually takes into account the convenience of maintenance. For example, some Split tube plate flanges are connected by flanges, which is convenient for disassembly and maintenance.

3. Adaptability and corrosion resistance

Split tube plate flanges can be made of different materials and thicknesses according to different use environments and requirements to meet different pressure, temperature and corrosion conditions. This enables the Split tube plate flange to adapt to various harsh working conditions and prolongs the service life of the equipment.

4. Easy to maintain and repair.

The structural design of Split tube plate flanges usually takes into account the convenience of maintenance. For example, some Split tube plate flanges are connected by flanges, which is convenient for disassembling and replacing pipes, thus reducing the maintenance cost and difficulty.

5. Strong corrosion resistance

Depending on the use environment, the Split tube plate flange can be made of different materials, such as stainless steel, titanium alloy and other corrosion-resistant materials. This enables the Split tube plate flange to adapt to various harsh working conditions and prolongs the service life of the equipment.

Split tube plate flange

3、Split tube plate flange field real shot

On-site aerial photography of Split tube plate flange。

Split tube plate flange

As you can see from the live video.，Shanxi jianing forging co., ltd is a Split tube plate flange。

4、Split tube plate flange application

Split tube plate flanges have the following purposes.

1. steam turbine

In the steam turbine, the Split tube plate flange may be used to support and fix some key components to ensure the normal operation of the steam turbine.

2. Large central air conditioner

The Split tube plate flange plays a role in supporting and fixing the refrigerant pipe in large central air conditioning, which is helpful to the circulation of refrigerant and heat exchange.

3. boiler

The Split tube plate flange also plays an important role in the boiler, which supports the fixed tubes and makes the boiler run stably and efficiently.

4. Condenser, evaporator, seawater desalination equipment

In these devices, Split tube plate flanges are also needed to support the fixed tubes to realize the processes of fluid condensation, evaporation and seawater desalination.

5. pressure vessel

In the pressure vessel, the Split tube plate flange is used to seal and fix the tubes to prevent medium leakage and ensure the safe operation of the vessel.

Split tube plate flange

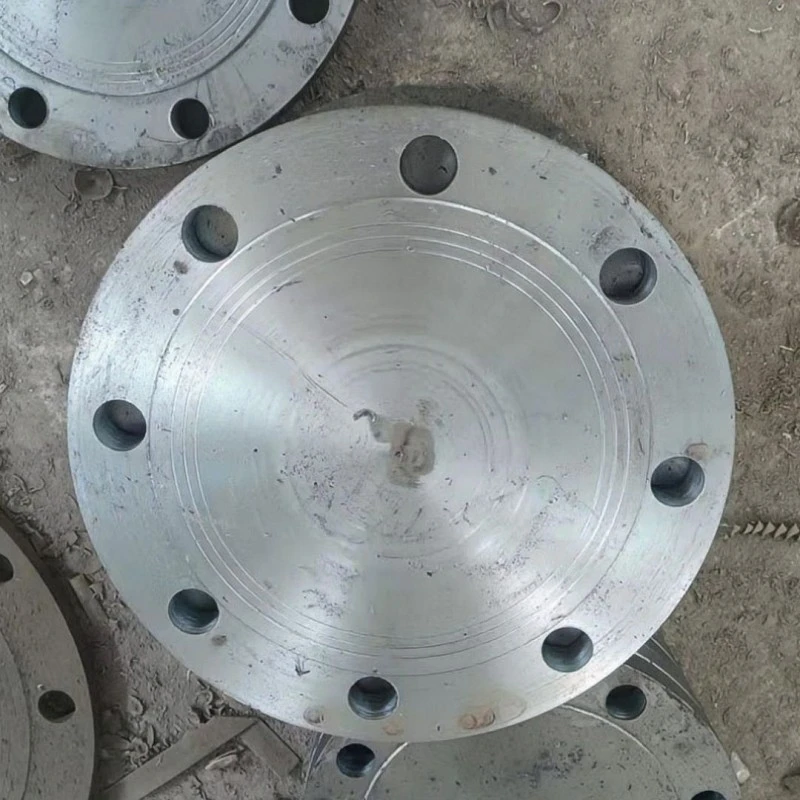

5、Split tube plate flange real shot picture

The Split tube plate flange is designed by Jianing forging with advanced technology, and the product has high performance advantages. In order to facilitate our customers to find a satisfactory tube sheet more quickly, the following high-definition pictures are provided for reference.。

Split tube plate flange

Note: All the pictures in this article were taken by Jianing manufacturer.。

6、Introduction of advantages of Split tube plate flange

The advantages of Split tube plate flange are as follows:

1. High strength and rigidity

Split tube plate flanges are usually made of metal, which has strong rigidity and bearing capacity.

2. Improve heat transfer efficiency

In heat exchangers and other equipment, the contact surface between the Split tube plate flange and the tubes is the main channel for heat transfer. By optimizing the Split tube plate flange design and material selection, the efficiency of heat transfer can be improved, energy consumption can be reduced, and the whole equipment can be improved. performance

3. Advanced technology

Modern Split tube plate flange production adopts many advanced technologies, such as centrifugal casting, numerical control drilling machine and so on, which improve the quality and performance of the Split tube plate flange.

4. High heat conduction efficiency

The contact surface between the Split tube plate flange and the tube is the main channel for heat transfer. Through the design and optimization of the Split tube plate flange, the heat transfer efficiency of the heat exchanger can be improved and the energy consumption can be reduced. This is especially important for industrial processes that require efficient heat exchange.

5. Sealing medium

Through accurate processing and assembly, the Split tube plate flange can effectively seal the fluid medium and prevent it from leaking to the external environment. This not only avoids resource waste and environmental pollution, but also ensures the safe operation of the equipment.

Split tube plate flange

Split tube plate flangeIt can be used for Improve heat transfer efficiency, Easy to maintain and repair., Sealing and leakage prevention, Adaptability and corrosion resistance, Support and fixation, Improve heat transfer efficiency and so on，widely used in Large central air conditioner, pressure vessel, boiler, tubular exchanger, pressure vessel and other fields。
